Product Information
Rim mounted sash and dead locks are often used on solid doors and gates to provide convenient security without the need to mortice out an aperture from the door material. Fixed directly to the surface, on the inside of the door, these locks are a popular option particularly in Victorian style domestic properties.

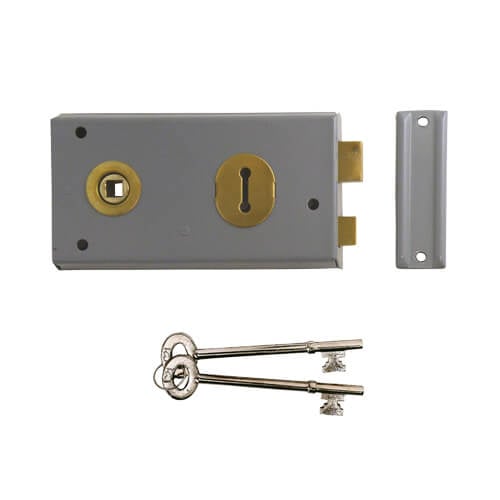

The Yale 401 Rim Sashlock is a typical non handed Rim Sash lock with designed for use as a basic security surface mounted product in residential or light commercial environments. the 2 way key hole ensures the lock can be mounted either way up to prevent the need for any re handing, and the 2 extended length keys provided will reach through the thickness of the door from the outside.
For use with Rim knob furniture. The knob controls the latch, and the key operates dead bolt from both sides of the door.
Available in polished Brass or in Black or Satin Grey with electro brass features. supplied boxed with staple and 2 keys
Sizes
- Latchbolt is withdrawn by knob on either side
- Deadbolt is unlocked by key from either the inside or outside
- Backset: 42mm
- Width: 138mm
- Height: 76mm
- Depth: 25mm
- Bolt throw: 13mm
- Lip depth: 8mm
- Faceplate to spindle: 106mm
- Spindle size: 8mm
- 2 Lever
- 12 differs
- Supplied with 2 keys
- Locks are reversible
- Pre-cut spare keys are available
- Available in singles
- 5 locks to an outer box
