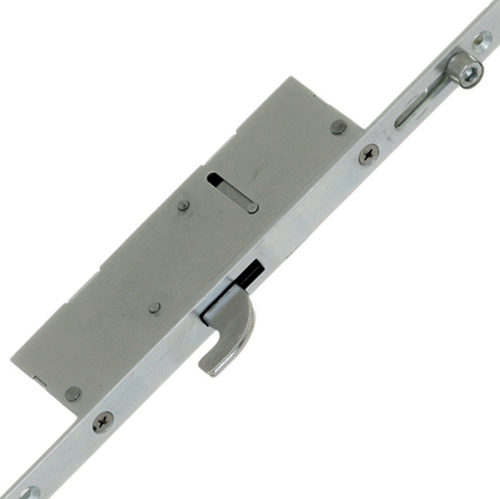

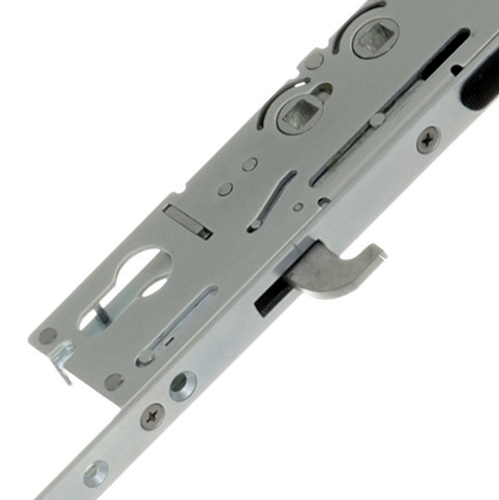

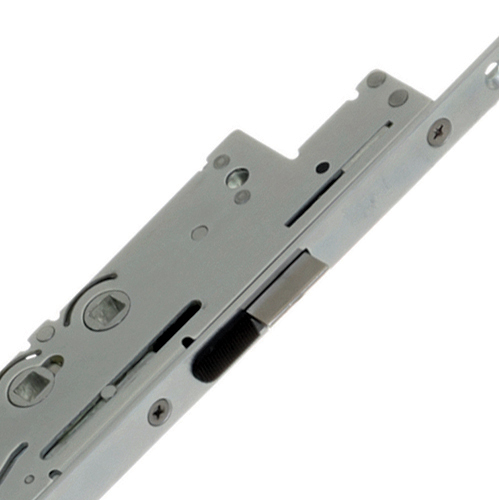

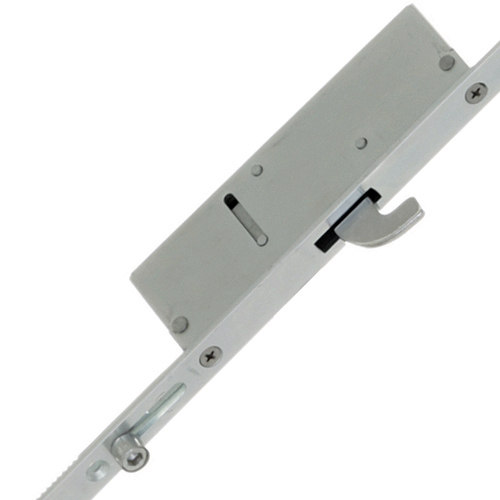

Vitawin Latch 3 Hooks 2 Rollers Double Spindle Multipoint Door Lock (top hook to spindle = 610mm)

Black Friday Offer!!! 5% Off Everything!!! Use Code 'BF5'

£87.70 INC VAT

Show price ex. VAT

RRP from: £134.93 Saving 35.0%

Variations

Select Backset

35mm

Select Faceplate

Flat 16mm - Square Ends

Select Operation

Double Spindle

Product Code:

VIT3H2R35DS

View Variations Table

Clear All

Product Information

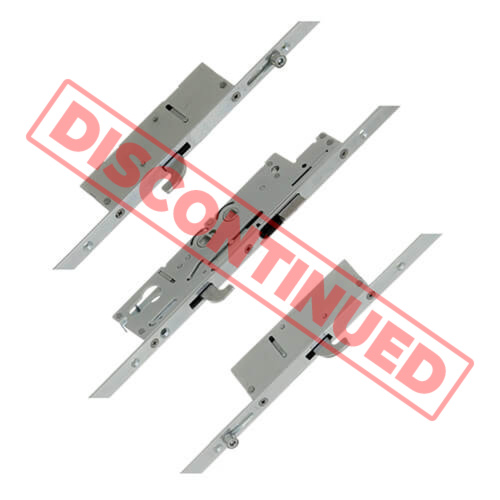

This part is discontinued and is no longer available.

However, part: FUXLCOMP3H4R35 is a potential alternative. This is a similar size lock with the hooks in the same position but this lock will have 4 rollers. Use in conjunction with full length keep order codes FUXLK4RKEEPL or FUXLK4RKEEPR.

Part: VITACASE35OLD is a potential alternative.

Sizes

Manufacturer: Vitawin
Backset: Select from drop-down - How do I measure the backset?
Centres PZ: 92mm/62mm - How do I measure the centres?
Faceplate: Select from drop-down - How do I measure the faceplate?
Spindle Size: 8mm
Rollers: 2
Hooks: 3
Latch: 1
Main Gearbox: Latch & hookbolt
Operation: Select from drop-down - What is the operation?
Spindle: Double 8mm
Handing: Non handed

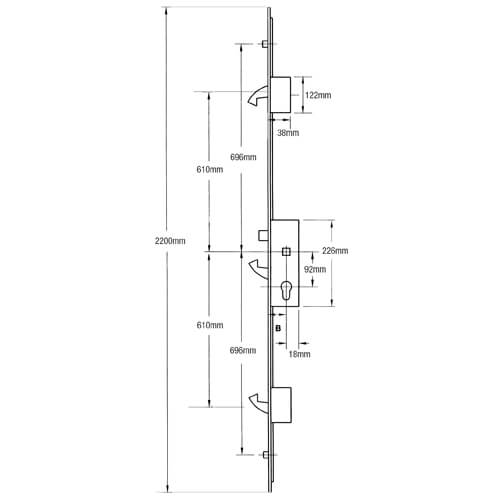

Distance Between Inner Locking: 1220mm
Distance Between Outer Locking: 1392mm
Height: 2200mm
Top Hook to Spindle: 610mm
Bottom Hook to Spindle: 610mm
Top Roller to Spindle: 696mm
Bottom Roller to Spindle: 696mm
Door Material: UPVC, Aluminium
