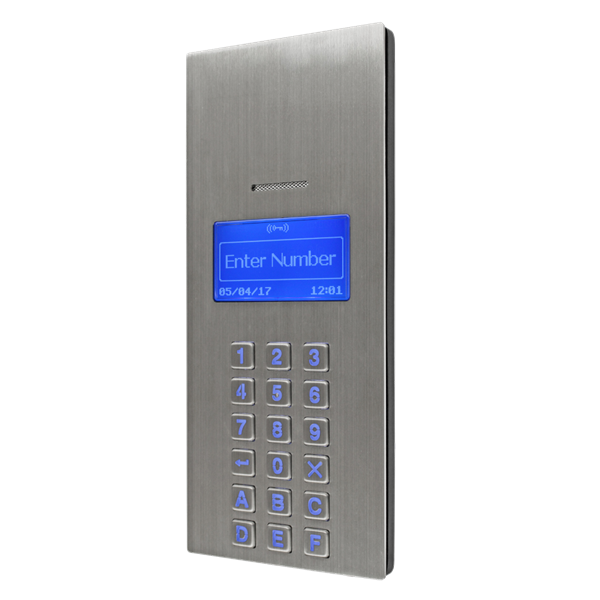

VIDEX 4812/4G Digital GSM Panel 500 Way LCD Display & A-F Buttons

The Videx 4812/4G digital 4G GSM panel enables a call to be made from an entry point (door, gate etc), to any telephone number (mobile or land line), and can call up to 750 apartments, each with a divert facility to call up to 3 additional numbers should the first be busy or unanswered. The panel is compatible with the 4000 series modular range and is the size of two 4000 series modules.

Integrated into the panel is a RFID proximity reader enabling up to 2000 user fobs/cards to be stored and used individually or in combination with a users unique access code, which can be set up to 6 digits. In addition the panel includes a 128x64 pixel graphical LCD display with blue back light that provides both text and graphical messages guiding a user through the panel programming and operation. The LCD graphical display can also be used to display a company logo or name which can switch between the panel’s standard (or customised) welcome message and the logo.

The panel is manufactured from 316 marine grade brushed stainless steel, is 2.5mm thick and has an illuminated numerical keypad with alpha keys A-F.

• Program up to 750 apartments (users)
• Integrated proximity access control for up to 2000 users
• 1 push to exit input
• Event log feature for up to 8000 events
• Dial in to open numbers: up to 2000
• Network compatibility: 2G, 3G & 4G
