Nico Restricted Egress Friction Stay

Nico Restricted Egress Friction Stay
Lock Shop Direct
  • Nico Restricted Egress Friction Stay
  • Nico Restricted Egress Friction Stay
  • Nico Restricted Egress Friction Stay
  • Nico Restricted Egress Friction Stay
Black Friday Offer!!! 5% Off Everything!!! Use Code 'BF5'
£
FROM

£11.12 INC VAT

Show price ex. VAT

RRP from: £17.36 Saving 36.0%

30
HOURS
25
MINUTES
36
SECONDS
left for delivery on Tuesday 03 December
Variations
Select Description
select
Select Handing
select
Quantity

Product Details

Product Information

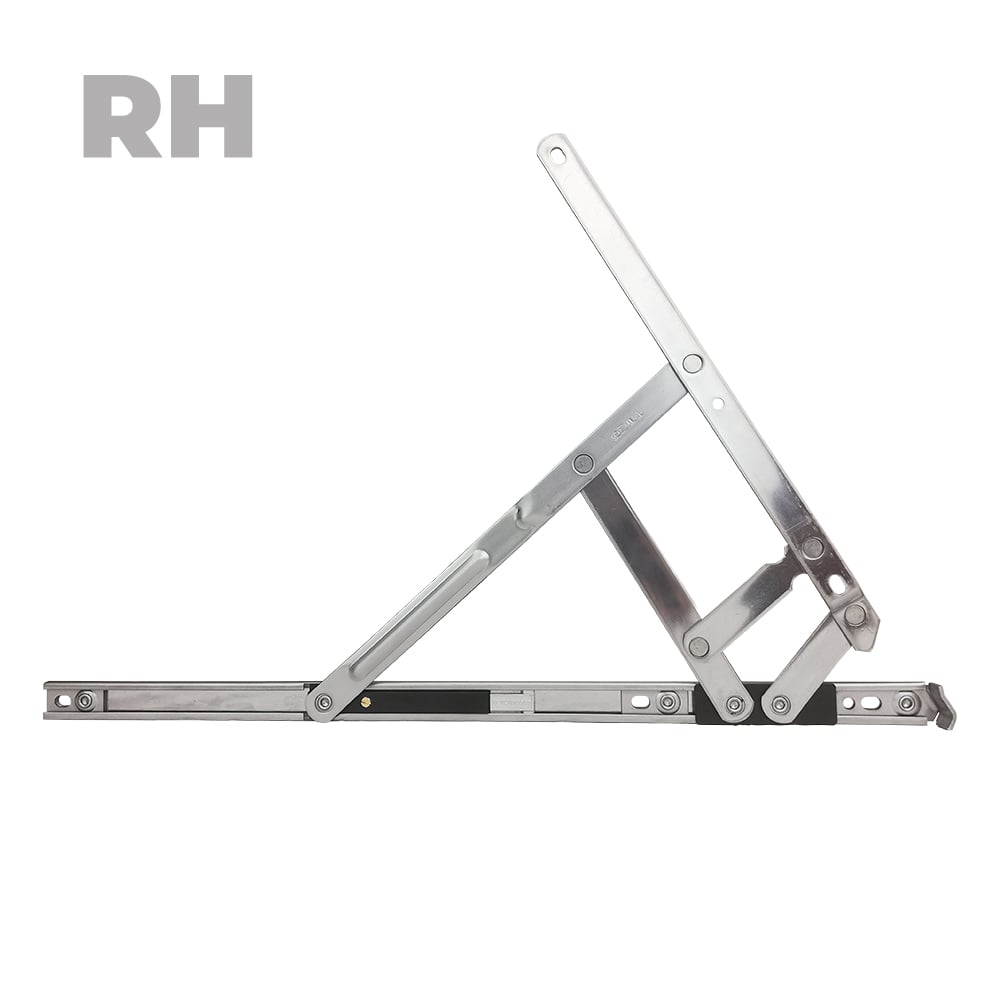

The Nico Restricted Egress Friction Hinge combines the features of standard restrictors and egress-only hinges. It protects against falling through windows in an initial restricted mode and then offers a quick escape route in the event of a fire in the egress position.

Supplied in matched pairs, the restricted egress hinge is fitted to the bottom of the sash with a matched unrestricted egress hinge fitted to the top. The single restrictor button is integral to the hinge and is designed to be less tempting to children, and the hinge automatically resets after closure from the egress position.

Sizes

  • Restricts window opening up to 100mm on sashes up to 700mm, subject to profile variations
  • Child resistant catch release for full opening, with automatic reset on closure
  • Unique geometry provides greater clear opening for escape
  • Stainless Steel riveted nose cap gives strength and reliability
  • 3 stage counterbore process improves resistance to wear
  • Glass reinforced nylon slide eliminates breaking and wear
  • 4.8mm Stainless Steel rivets improve load carrying
  • Stainless construction has exceptional corrosion resistance
  • Brass adjustment screw provides adjustable friction
  • 10 year mechanical guarantee
  • Made in Britain to an ISO 9001 Quality System
  • Meets the requirements of BS EN14351 Load Bearing Capacity of Safety Devices
  • Complies with BS 6375-2 : 2009 Strength and Operation Characteristics
  • Complies with Building Regulations Part B: 2013 for Fire Escape
  • Complies with BS 9991:2011 for Fire Escape
  • Restricts Window Openings to a maximum of 100mm in compliance with BS8213-1:2004
  • Secured By Design Approved as a Police Preferred Specification
  • Successfully cycle tested as a critical component within BS EN 6375 Pt 2 ( Resistance to repeated opening and closing )
  • Successfully weather tested as a critical component within BS EN 6375 Pt 1 ( Air, wind and water testing )
