Product Information

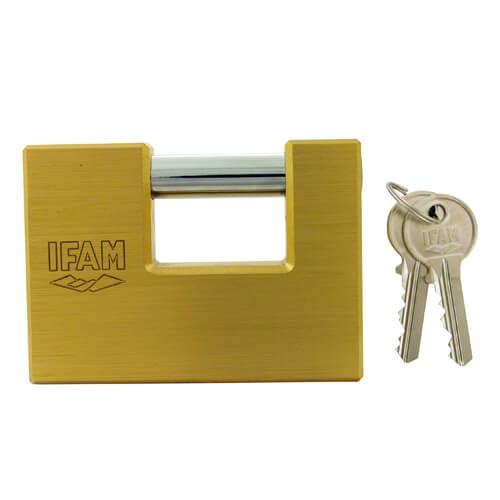

Available in two sizes (70mm and 90 mm), the U Series security padlocksfrom IFAM are especially designed for vertical grille type closures andshutters. It can also be used with H14 and M10 chains from IFAM andinclude key profiles that are compatible with the cylinders, rim locks,locks and other padlocks from the brand.
Sizes
Opening / locking: Ball bearing locking system. Key retention system when the padlock is open.
| U70 padlock | U90 padlock |
| Body base (A) | 70mm | 90mm |
| Body height (B) | 55mm | 64.5mm |
| Shackle height (C) | 15.5mm | 17.5mm |
| Shackle diameter (D) | 12mm | 12mm |
| Distance from the padlock base to the shackle base (E) | 24mm | 31.4mm |
| Body thickness (F) | 20mm | 20mm |
| Shackle span (M) | 22mm | 36mm |
| Padlock's large flap's length (N) | 34mm | 34mm |
| Padlock's short flap's length (L) | 14mm | 20mm |
- 2 keys
- Key retaining
- Automatic locking
- Key opposite end to bolt
- Solid extruded brass body with carbon nitride hardened shackle
- Ball bearing locking mechanism
- Key at the opposite end to the pin
- Keyed alike versions on ongoing numbers
- Visi-packed
- Boxed for keyed aliked version
