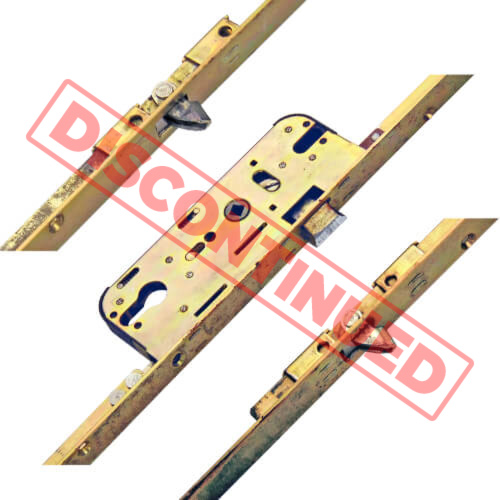

GU Ferco Latch & 2 Tongue Hooks - Boulton & Paul Multipoint Door Lock

This part is discontinued and is no longer available.

However, part: G1199921 is a potential alternative. This replacement has a deadbolt, the central gearbox is a different design & the wedge bolts are in a different position so a fair bit of modification and a new keep will be required

The Tripact lock features a deadbolt, in contrast to the standard Ferco locks. Ferco locks are part of the GU group of companies. They are fairly unique as they feature 70mm centres (PZ) and can therefore be easily identified.

The Tripact Ferco UPVC door lock features a latch and deadbolt in the central gearbox, with 2 or 4 rollers or a pair of small flip or tongue hooks. While they are high quality, they offer low security by modern standards and new doors are no longer manufactured with these locks. Nevertheless, they have been fitted to thousands of doors over the years and there is a substantial replacement requirement.

Often fitted to timber doors, the trip act flip hooks were designed to be shallow, to require as little door preparation as possible.

In fact the original Tripact locks were also latch only, but a deadbolt was added to improve security. The original locks had a 20mm faceplate with a T shaped rail that ran behind it. They were only available with a 40mm backset. New versions feature a deadbolt and a slightly smaller faceplate. The hooks line up but a new deadbolt keep will be required if you are replacing a very early lock.

The spindle is solid, with a standard lift lever function. However, the spindle is only 7mm, compared with standard locks at 8mm. 70mm PZ handles will be supplied with a 7mm spindle to suit these locks, but its important to be aware of this difference.

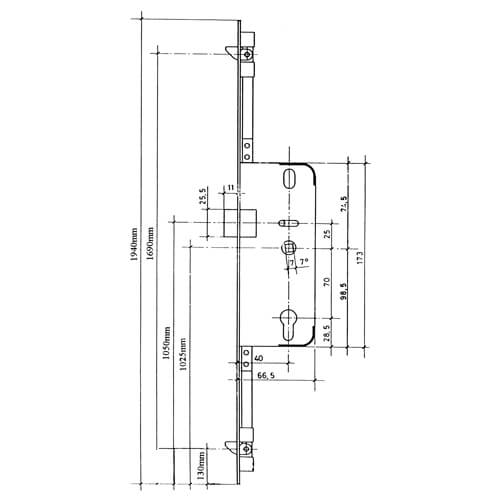

Gearboxes measure 212mm high x backset + 15mm wide.

Operation: Lift Lever

To lock the door

1. Lift the handle upwards to engage the locking points.

2. Lock the locking points and main deadbolt (if present) by turning the key.

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points and retract the latch.

We stock a range of associated products for GU Ferco Tripact multipoint door locks, including keeps, spindles, handles and accessories.

You may find this lock used as an UPVC door lock, an aluminium door lock, a timber multipoint door lock or a composite door lock .
