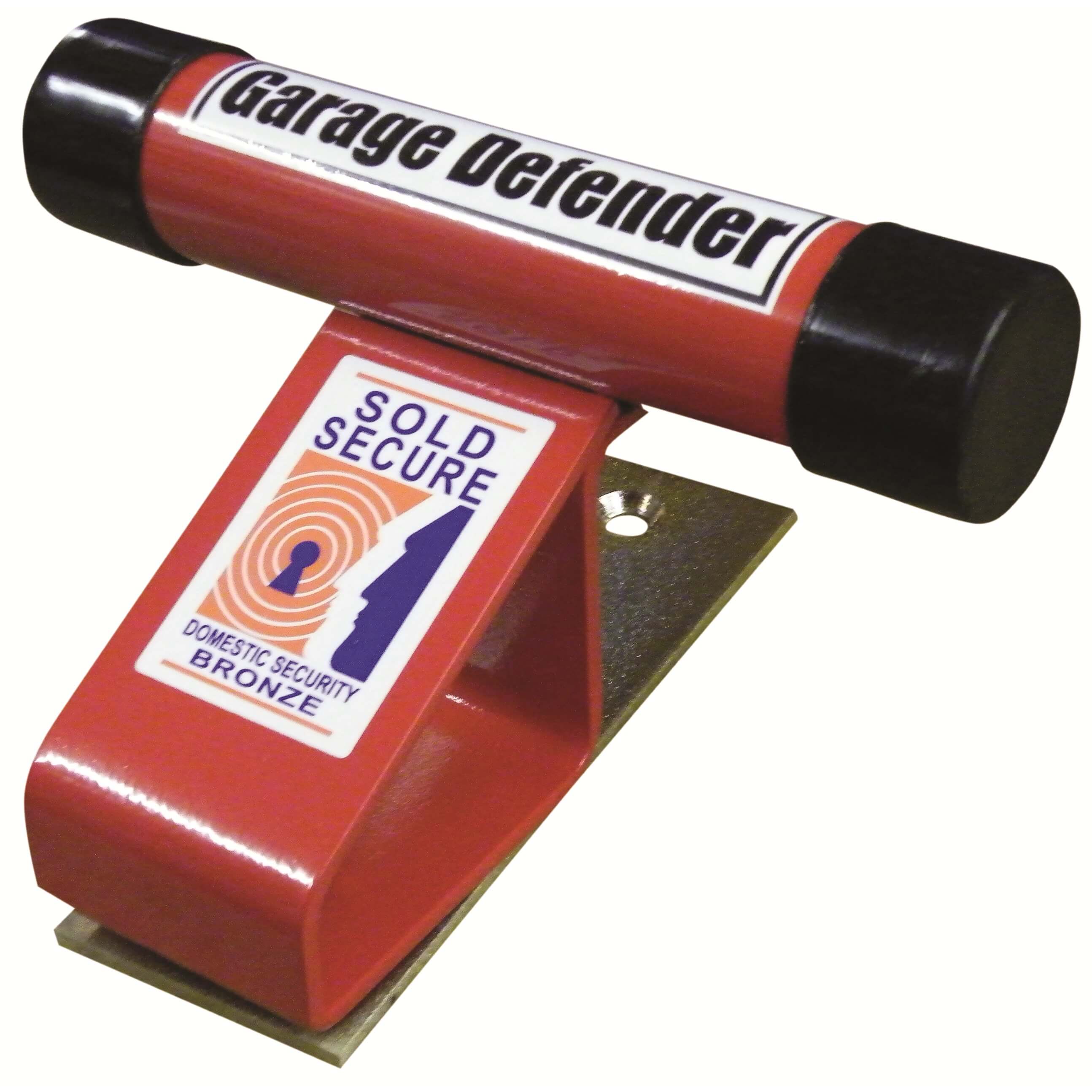

Garalock Garage Door Defender

Sizes

• When fitted the defender prevents up and over doors from being opened
• Unlock and remove padlock to open
• Dimension of padlock eye: 13mm
• Length: 215mm
• Width: 260mm (At widest point)
• Height: 144mm
• Base Screw Centres (1st to 2nd): 110mm
• Base Screw Centres (2nd to 3rd): 70mm
• Solid secure bronze rated
• Padlock supplied seperately
• For use with Ifam padlock (IF52060 - Differ) or (IF52061 - Keyed Alike)
• At least 5 inches of solid concrete is required to fit this product correctly
• Supplied with security bolts

• Fitting - Use the base plate as a template drill 2 holes with a 10mm diameter concrete bit 10mm deep then remove the base plate and re-drill the holes with a 16mm diameter concrete bit 90mm deep

• Boxed

• Supplied in singles
