EVVA A5 KDZ Off-Set Euro Key & Turn Cylinder KD

EVVA A5 KDZ Off-Set Euro Key & Turn Cylinder KD

Evva

FREE UK MAINLAND DELIVERY ON ORDERS OVER £60 PLUS VAT

FROM

£26.18 INC VAT

Show price ex. VAT

RRP from: £41.88 Saving 37.5%

63

HOURS

42

MINUTES

01

SECONDS

left for delivery on Tuesday 26 November

Variations

Select Description

Select Cylinder Size Overall

Select Cylinder Size With Cam

Select Finish

Select Keyed

Keyed To Differ

Select Keys Supplied

3

Select Packaging

Boxed

Select A Side

Select B Side

Select Body Length

View Variations Table

Clear All

Quantity

Add to Basket

Product Details

Product Information
Reviews

Product Information

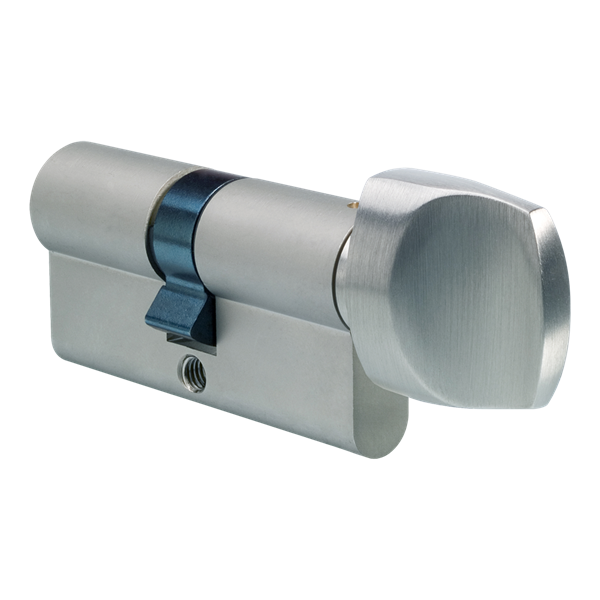

The EVVA KDZ keyed to differ euro key & turn cylinder has a standard euro profile and is supplied complete with a connecting screw. The EVVA A5 system is a basic but robust 5-pin locking system and is available in many cylinder styles and with many optional special features.

Optional Special Features Available

SOS - Clutch Cam (Anti-Barricade)
Thumbturn is disengaged when a key is inserted on the outside allowing access even if turn is blocked or held.

Z - Cog Wheel Cams
Designed for use with multi-point locks or specialist mortice locks that are operated via a gear ring or a toothed rack, they can be supplied with 10, 13, 14 or 18 teeth instead of a standard cam.

CLA - Classroom Function
Thumbturn can only be rotated in one direction (reversible) so that a door can only be unlocked from the inside, it is supplied with SOSE as standard.

CMK - Construction Keying
Cylinders installed during construction are operated by the "CMK Master Key". On completion of work the CMK is disabled by use of any Master Key or Differ Key. This removes the need to retrieve or keep track of any CMK Master Keys issued.

VAR - ABC Vario
3 sets of keys are provided, once key B is used then the A keys no longer work; when the C key is used then neither A nor B keys will no longer work.

PBP - Pre Determined Break Point
Cylinder will snap at a pre determined point to prevent entry via snapping, please note that this function is not TS007 rated.

SSW - All Weather Cover
Spring loaded shutter plates mounted on the outside of the cylinder open and close when the key is inserted or removed. NB - adds 5mm to cylinder length.

TXT - Additional Numbering
Specific numbering or sequential numbering on keys to allow the end user to keep track of issued keys and highlight losses.

SEW - Sea Water Protections
For cylinders that are exposed to more severe environmental influences, corrosion-susceptible cylinder parts are supplied with a special surface treatment; this comes as standard for Aldridge cylinders.

SG-A - Bump Resistant
Provides protected against access via a specially milled bump key by using separated body pins.

FLEX - Adapted Entry
One or both sides of the cylinder can be operated via Square, Triangle, Hexagon or slot feature, e.g. one side could be opened with a key and the other by an 8mm socket.

ZVS - Retracted Cylinder Body
For use in special metal framed doors with integrated security roses.

ARS - Plug Pulling Protection
A special nickel silver cam connects to the plugs on both sides to protect from plug pulling attempts.

KZS - Plug Pulling Protection
Carbide components in the plug protect against plug pulling attempts.

Please contact us for more information.

Unrestricted key profile
‘A’ section (F section to special order)
30 minute fire resistance to 821° C
Dimensions to centre of cam
Supplied with 3 keys as standard

Sizes

Operation

Extra Information

Documentation

Servicing
