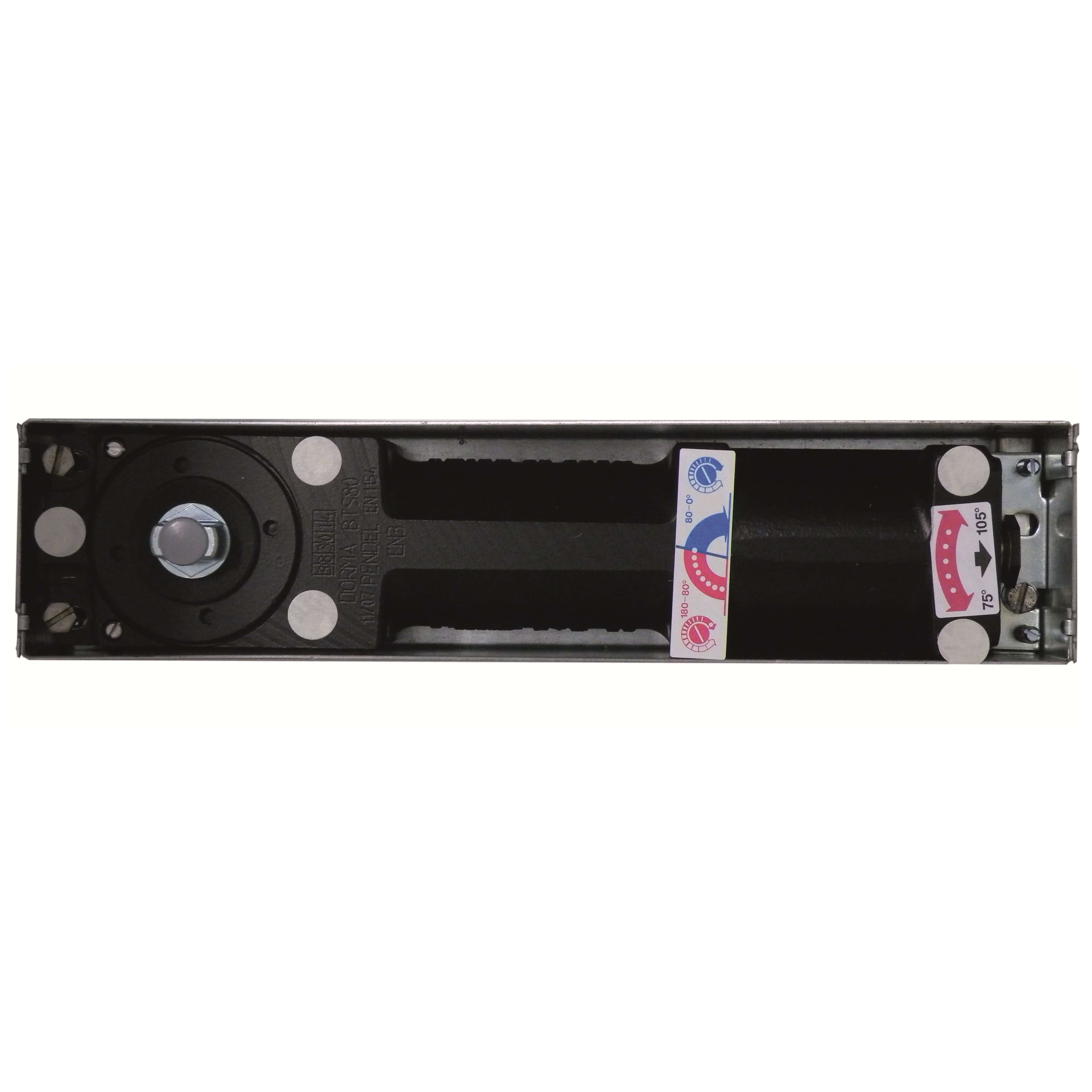

Dorma BTS80 Size 4 Floor Spring

Dorma BTS80 Size 4 Floor Spring
dormakaba
  • Dorma BTS80 Size 4 Floor Spring
  • Dorma BTS80 Size 4 Floor Spring
Black Friday Offer!!! 5% Off Everything!!! Use Code 'BF5'
£ 560.39

£560.39 INC VAT

Show price ex. VAT

RRP from: £607.15 Saving 7.5%

67
HOURS
17
MINUTES
25
SECONDS
left for delivery on Tuesday 03 December
Variations
Select Description
Select Description
Adjustable hold open

Product Code:
BTS80EN4

2 items in stock
Quantity

Contact us now if there is insufficient stock and one of our sales team will be happy to help

Product Details

Product Information

These Dorma BTS80 Floor Springs have a fixed strength size 4 and can be used on a single or double action door when fitted in conjunction with correct accessory pack.

These floor springs can be used on doors with a maximum weight of 300kg and a maximum width of 1100mm, are tested to BS EN1154 and are CE Marked.

Features include hold open, back check, delayed action, adjustable closing speed and adjustable latch action - See FAQs for more information on how these functions work.

Sizes

  • Fitting: Concealed - Fitted into the floor.
  • Tested to BS EN1154.

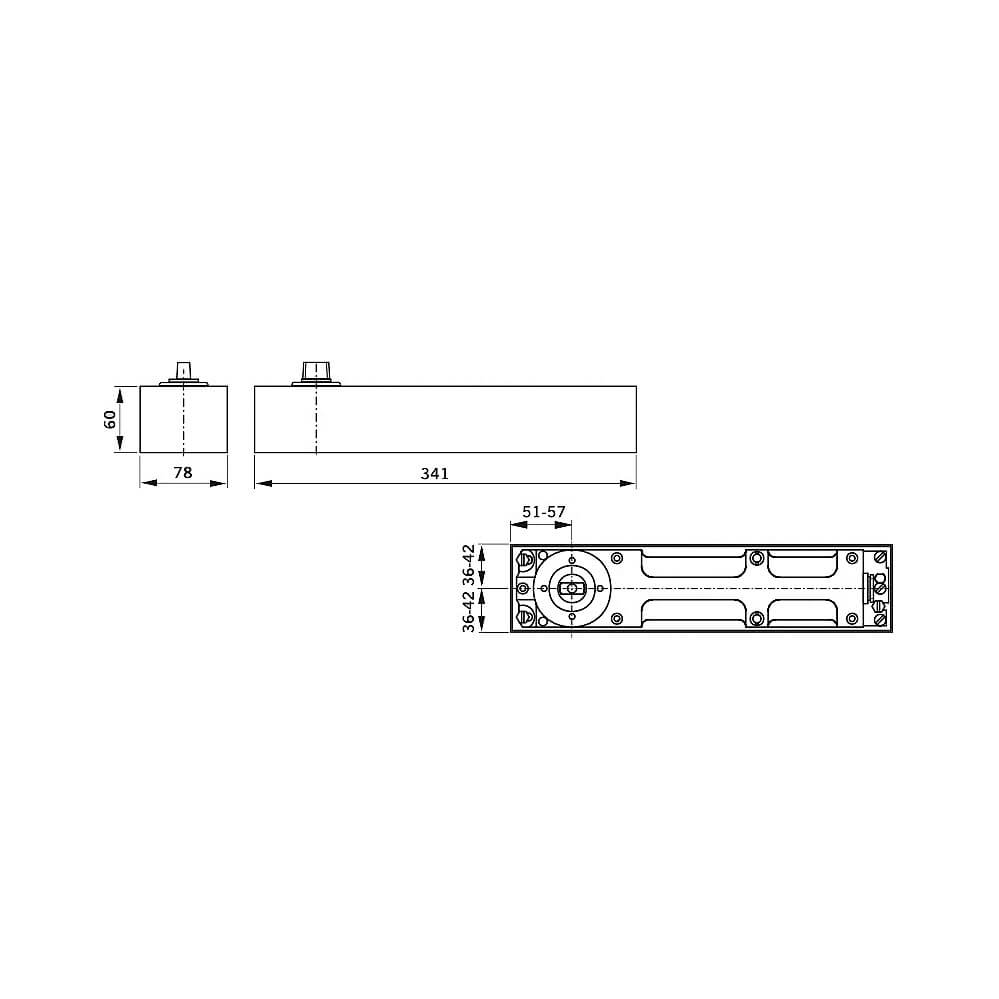

  • Height: 60mm
  • Width: 78mm
  • Length: 341mm
  • Maximum Door Weight: 300kg
  • Maximum Door Width - 1100mm
  • Strength: Fixed Size 4
  • Spindle: Yes - BTS80EN4 - 15mm(not including 3mm collar)
  • Spindle: No - BTS80F
  • Adjustable Closing Speed: Yes.
  • Adjustable Latch Action: Yes.
  • Delayed Action: Yes.
  • Backcheck: Yes.
  • Hold open - Any angle between 75 and 175 degrees. (hold open variants not suitable for use on Fire Doors)
  • The angle at which the hold open begins can be adjusted between 75 and 105 degrees.
  • CE Marked.
  • Non Handed.

See below ordering options for single and double door accessory packs

BTS80VSA - Single Action Accessory Pack.

BTS80VDA - Double Action Accessory Pack.
