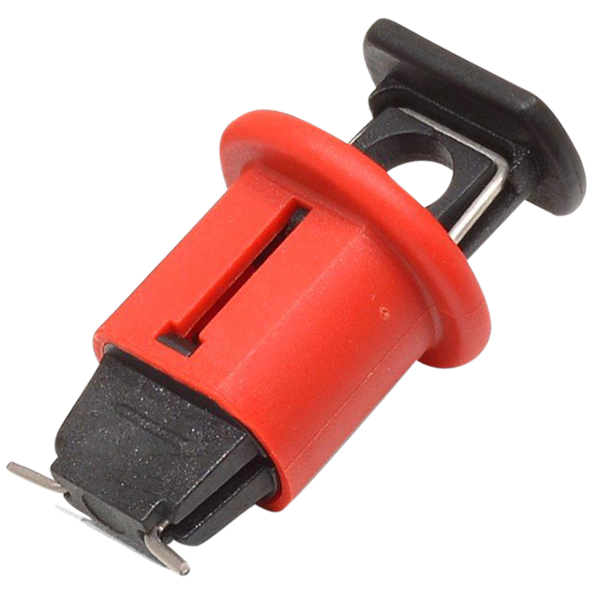

ASEC Miniature Circuit Breaker Lock Out Pin

These Miniature Circuit Breaker (MCB) Lockouts from Asec are designed to fit almost all modern miniature circuit breakers with either single or multiple pole and they prevent the circuit breaker toggle from being switched on. Simply insert into position and apply a padlock (maximum 7mm shackle diameter) and the breaker will remain in the safe position until the padlock and lockout have been removed. As there are a range of minature curcuit breakers available we stock a range of breakers to suit them.

Our range of ASEC Lockout Tagout equipment meets all practices & procedures to safeguard employees from the unexpected energization or startup of machinery and equipment, or the release of hazardous energy during service or maintenance activities.

Options Include:

‘Pin out’ (AS11858) - Designed to fit most popular breakers up to 60 Amp.
‘Pin in’ (AS11859) - Designed to fit most popular breakers up to 60 Amp.
‘Tie bar lockout’ (AS11860) - Adjustable thumb wheel operation to fit larger or multi-pole circuit breakers connected with a cross bar (and requires no holes in the breaker to fit)
‘Pin out wide’ (AS11861) - Designed with an extra wide body to fit breakers greater than 60 Amp.

• Finished in red for increased visibility & safety
• Prevents the circuit breaker toggle from being switched on
• Lock out using a single safety padlock (max' 7mm shackle diameter)
