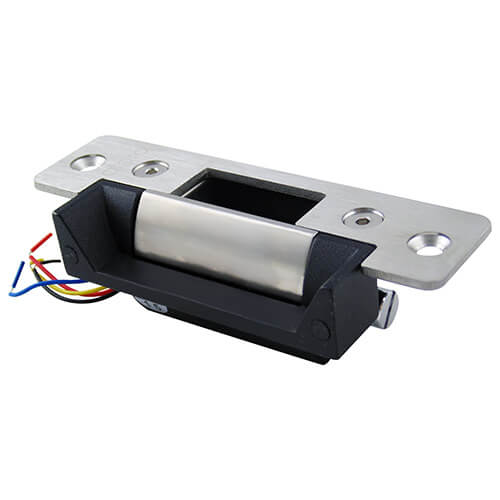

Alpro AL110 ANSI Electric Release 12v/24v DC- Standard 124mm Faceplate

Alpro AL110 ANSI Electric Release 12v/24v DC- Standard 124mm Faceplate
Alpro
  • Alpro AL110 ANSI Electric Release 12v/24v DC- Standard 124mm Faceplate
  • Alpro AL110 ANSI Electric Release 12v/24v DC- Standard 124mm Faceplate
  • Alpro AL110 ANSI Electric Release 12v/24v DC- Standard 124mm Faceplate
  • Alpro AL110 ANSI Electric Release 12v/24v DC- Standard 124mm Faceplate
  • Alpro AL110 ANSI Electric Release 12v/24v DC- Standard 124mm Faceplate
  • Alpro AL110 ANSI Electric Release 12v/24v DC- Standard 124mm Faceplate
FREE UK MAINLAND DELIVERY ON ORDERS OVER £60 PLUS VAT
£
FROM

£267.31 INC VAT

Show price ex. VAT

RRP from: £269.21 Saving 0.5%

51
HOURS
15
MINUTES
30
SECONDS
left for delivery on Tuesday 26 November
Variations
Select Operation
select
Select Colour
Stainless Steel
Select AC or DC
DC
Quantity

Product Details

Product Information

This Alpro ANSI style release is suitable for use on metal and timber doors. Often used in conjunction with latches, including narrow style dead latch mortice locks found on aluminium doors. The item features a 124mm long stainless steel faceplate, selectable 12v or 24v operation (when wiring) and is field reversible between fail-safe and fail-secure modes. An additional RM1 rectifier module can be purchased separately which allows the release to be run on AC power if required. Speak to our technical team for further information.

Sizes

  • Type: Mortice.
  • Style: ANSI.
  • Jaw: Non adjustable
  • Dimensions: (H) 124mm x (W) 31mm x (D) 35mm.
  • Field Reversible: Fail safe / fail secure.
  • Current Consumption: 200mA at12v DC, 100mA at 24v DC.
  • Holding Force: 1750kg.
  • Latch Accommodation: 13mm (incl. 3mm air gap).

Operation

Extra Information

Documentation







Servicing

Reviews 1 - 1

Contact us now if there is insufficient stock and one of our sales team will be happy to help
