Alpro AL110 ANSI Electric Release 12v/24v DC- Long 200mm Faceplate

Alpro AL110 ANSI Electric Release 12v/24v DC- Long 200mm Faceplate
Alpro
  • Alpro AL110 ANSI Electric Release 12v/24v DC- Long 200mm Faceplate
  • Alpro AL110 ANSI Electric Release 12v/24v DC- Long 200mm Faceplate
  • Alpro AL110 ANSI Electric Release 12v/24v DC- Long 200mm Faceplate
  • Alpro AL110 ANSI Electric Release 12v/24v DC- Long 200mm Faceplate
  • Alpro AL110 ANSI Electric Release 12v/24v DC- Long 200mm Faceplate
FREE UK MAINLAND DELIVERY ON ORDERS OVER £60 PLUS VAT
£
FROM

£288.35 INC VAT

Show price ex. VAT

RRP from: £290.40 Saving 0.5%

48
HOURS
42
MINUTES
39
SECONDS
left for delivery on Tuesday 26 November
Variations
Select Operation
select
Select Colour
Stainless Steel
Select AC or DC
DC
Quantity

Product Details

Product Information

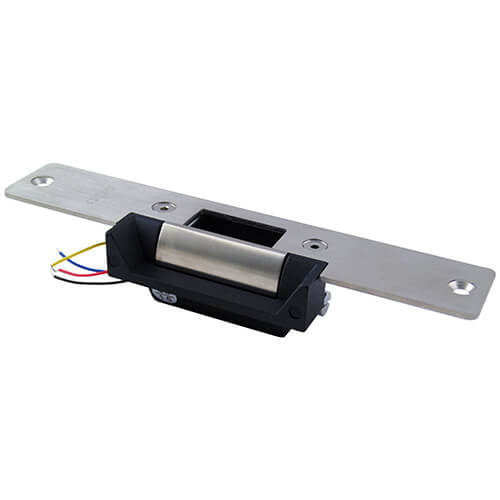

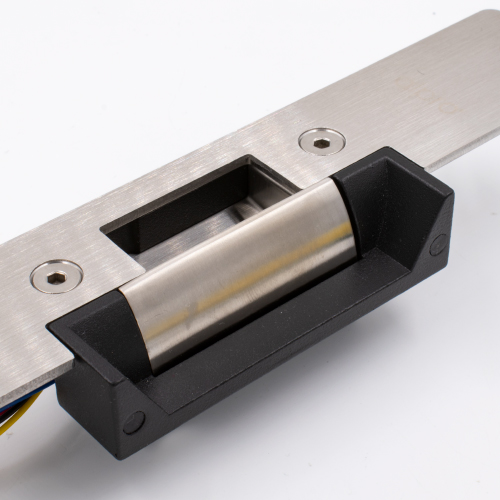

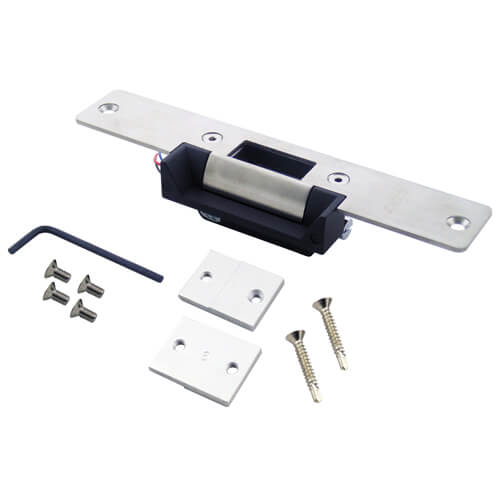

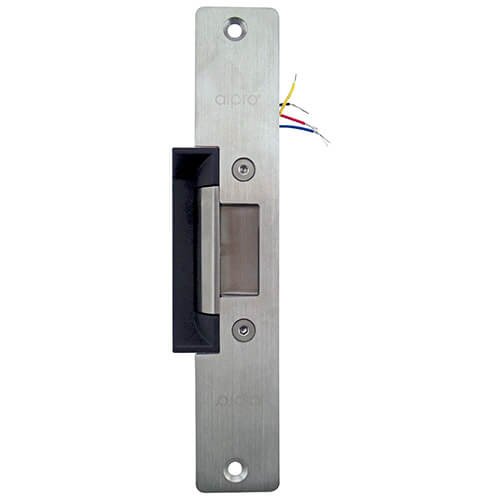

This Alpro ANSI style release features a long faceplate and is suitable for use on timber doors. Often used in conjunction with mortice latches, the item features a 200mm long stainless steel faceplate, selectable 12v or 24v operation (when wiring) and is field reversible between fail-safe and fail-secure modes. An additional RM1 rectifier module can be purchased separately which allows the release to be run on AC power if required. Speak to our technical team for further information.

Sizes

  • Type: Mortice.
  • Style: ANSI.
  • Jaw: Non adjustable
  • Dimensions: (H) 200mm x (W) 44.5mm x (D) 35mm.
  • Field Reversible: Fail safe / fail secure.
  • Current Consumption: 200mA at12v DC, 100mA at 24v DC.
  • Holding Force: 1750kg.
  • Latch Accommodation: 13mm (incl. 3mm air gap).
